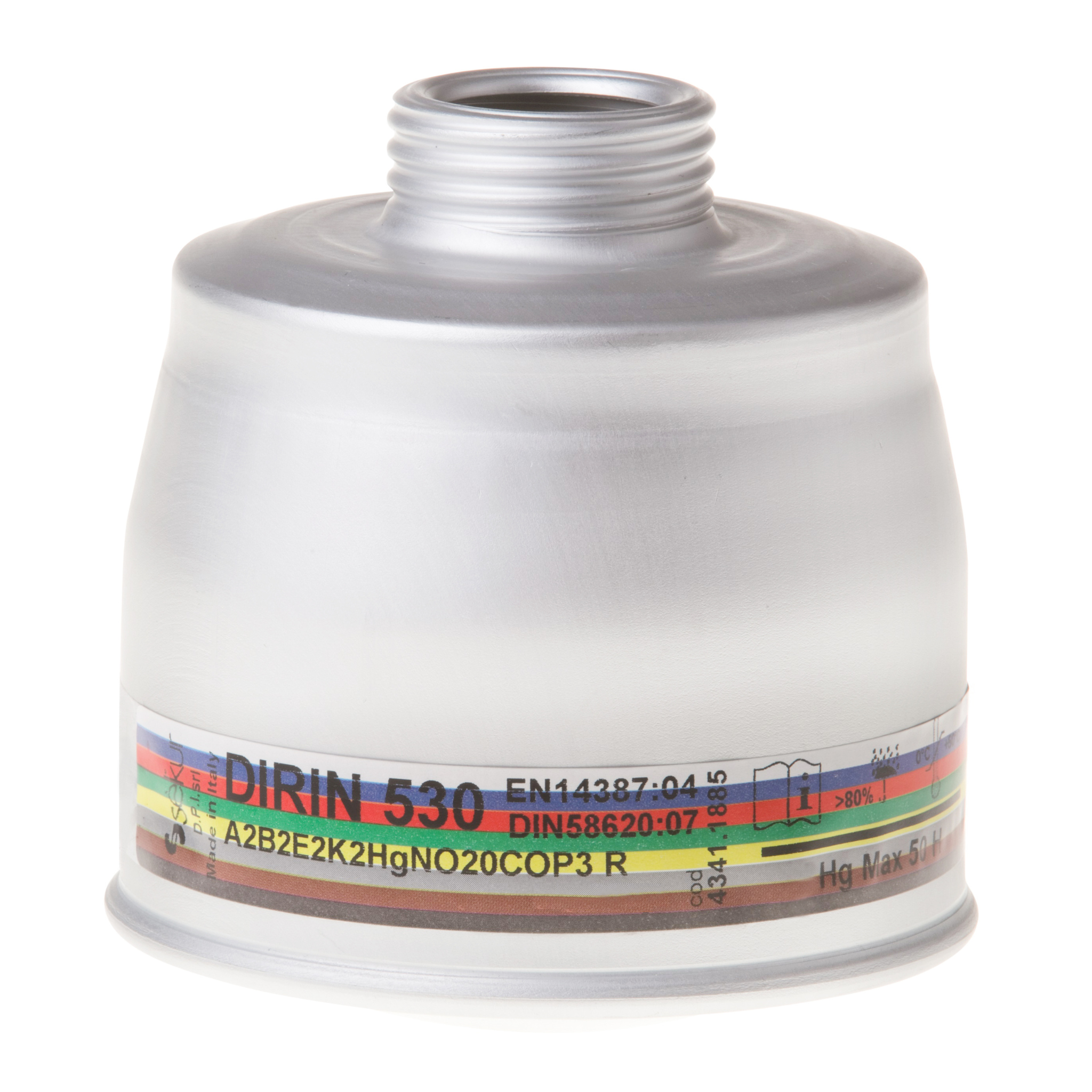

RSG 530 A2B2E2K2HgNO CO 20 P3 R

Product number:

Description

This combined multipurpose filter is designed to provide comprehensive protection against a wide range of hazardous substances. It effectively filters organic, inorganic, and acid gases and vapors, including ammonia and organic ammonia derivatives, as well as mercury and mercury compounds. In addition, it offers protection against radioactive and toxic particles, micro-organisms, nitrous gases, nitrogen monoxide, and carbon monoxide.

The filter is also capable of trapping solid and liquid particles, ensuring high-level safety in various industrial and hazardous environments. Designed with a thread according to EN 148-1, it ensures compatibility with relevant safety equipment for optimal use.

The 530 Series filter canisters have been designed to provide exceptional low breathing resistance, the highest comfort and long duration of use. The standard DIN 40mm thread makes it suitable for use on the entire RSG Full Face Mask

Colour codes
Brown: A Organic gases and vapours with boiling point > 65 ° C
Brown: AX Organic gases and vapours with boiling point ≤ 65 ° C
Grey: B Inorganic gases and vapours (e.g. chlorine, hydrogen sulfide, hydrogen cyanide)
Yellow: E Acid gases and vapours (e.g. sulfur dioxide, hydrogen chloride)
Green: K Ammonia and derivatives
Red: Hg Mercury vapour
◉ White: P Particles, mists, fumes

Blue: NO Nitrogen monoxide
◉ Black: CO Carbon Monoxide



Features

Part number  401885
Model RSG Filters
Material Aluminium
Color Aluminium
Weight <500 gram
Size ø108 x 74mm
Shelf life 5 Years
Country of manufacture The Netherlands
Operating temperature -10 – +55 °C, < 90 % RH
Storage temperature -10 – +55 °C, < 95 % RH
Assigned protection factor 20 – EN 136 full face mask
Nominal protection factor 1000 – EN 136 full face mask
Approval EN 14387 | DIN58620 (CO)
Directive (EU) 2016/425 PPE

Documents

Technical datasheet
Manual
