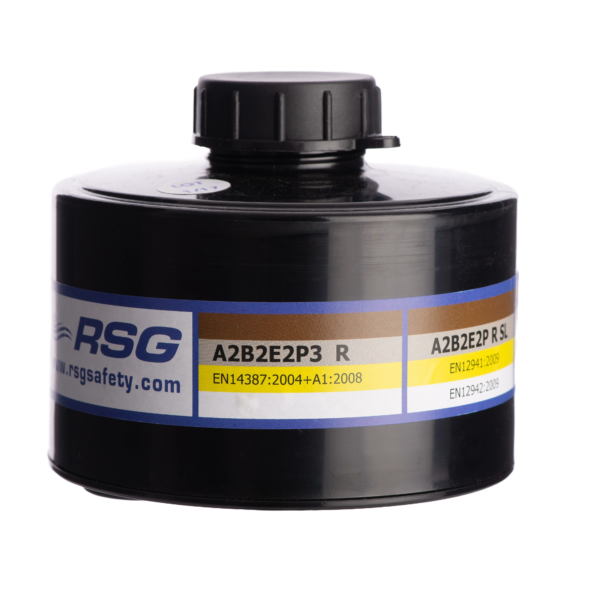

A2B2E2P3 Combination Filter – DIN 40 EN 148-1 Plastic – 400 series

Product number:

Description

The RSG 400 Series Particle Filters have been designed to provide exceptional low breathing resistance, the highest comfort and long duration of use.

The standard DIN 40mm (EN148-1) thread makes it suitable for use on the T-Air PAPR systems and the entire Full Face Mask range.

The RSG A2B2EP3 Filter canister (Plastic) has a standard EN148-1 thread connection and protects against Organic, inorganic gases and vapors, Sulphur dioxide, and all kinds of solid and liquid particles.



Colour codes
Brown: A Organic gases and vapours with boiling point > 65 ° C
Brown: AX Organic gases and vapours with boiling point ≤ 65 ° C
Grey: B Inorganic gases and vapours (e.g. chlorine, hydrogen sulfide, hydrogen cyanide)
Yellow: E Acid gases and vapours (e.g. sulfur dioxide, hydrogen chloride)
Green: K Ammonia and derivatives
Red: Hg Mercury vapour
◉ White: P Particles, mists, fumes

Features

Part number  401216
Model RSG 400 Series
Material ABS
Color Black
Weight 348 gram
Size ø110 x 54mm
Shelf life 10 Years
Country of manufacture The Netherlands
Operating temperature -10 – +55 °C, < 90 % RH
Storage temperature -10 – +55 °C, < 95 % RH
Assigned protection factor Depends on application
Nominal protection factor Depends on application
Approval EN 12941:1998 + A2:2008, EN 12942:1998 + A2:2008, EN 14387:2004 + A1:2008
Directive (EU) 2016/425 PPE

Documents

Technical datasheet
Manual
Brochure
Declaration of conformity
