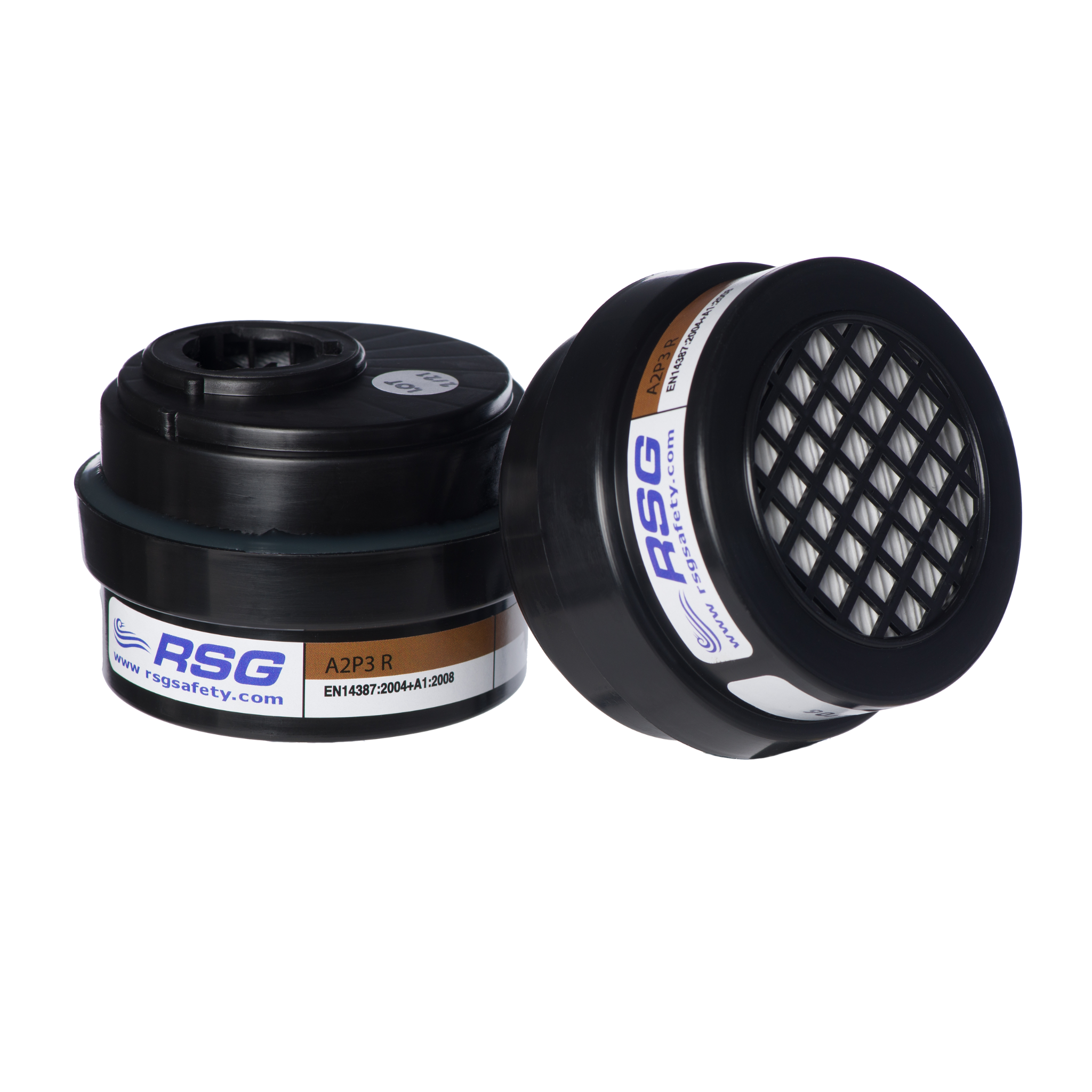

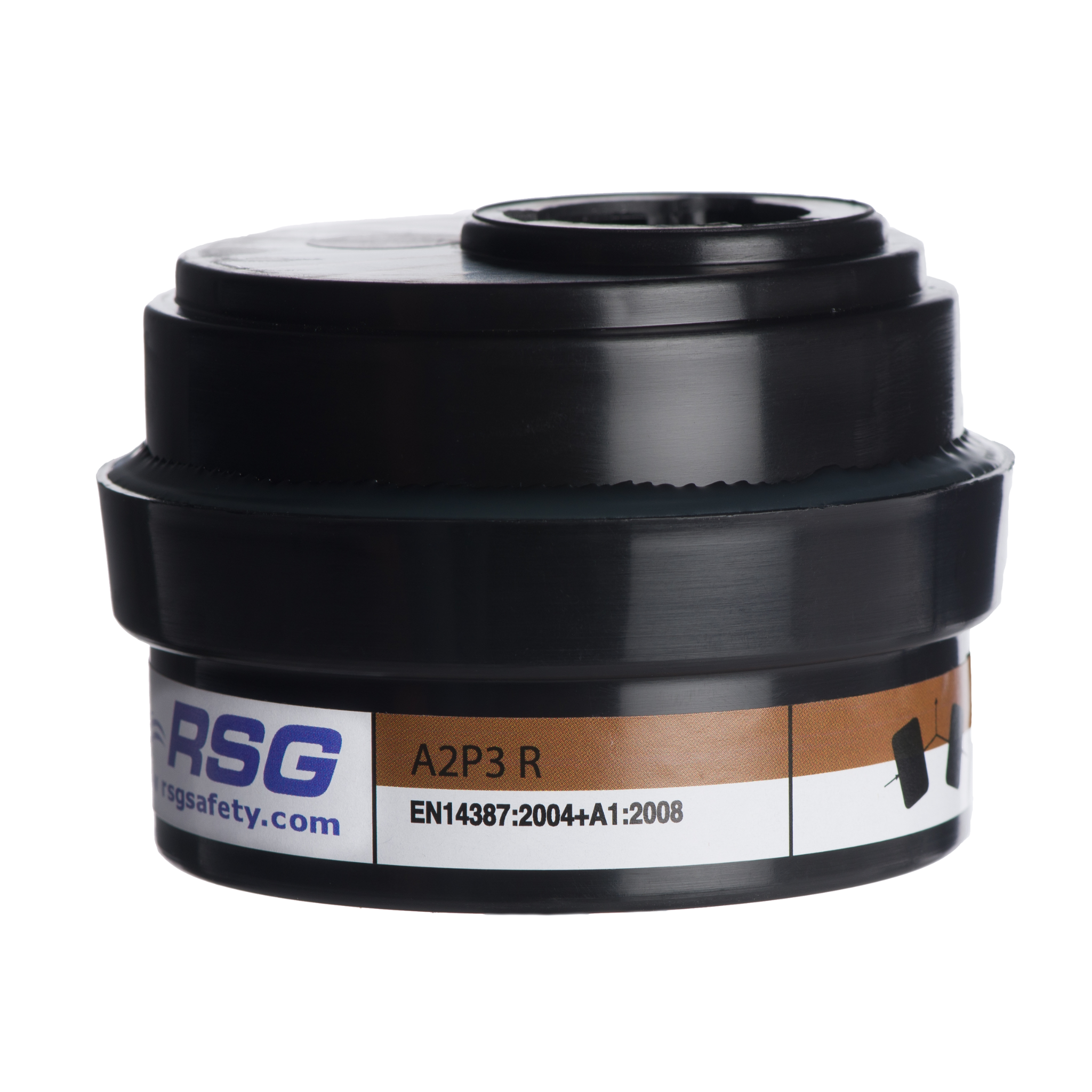

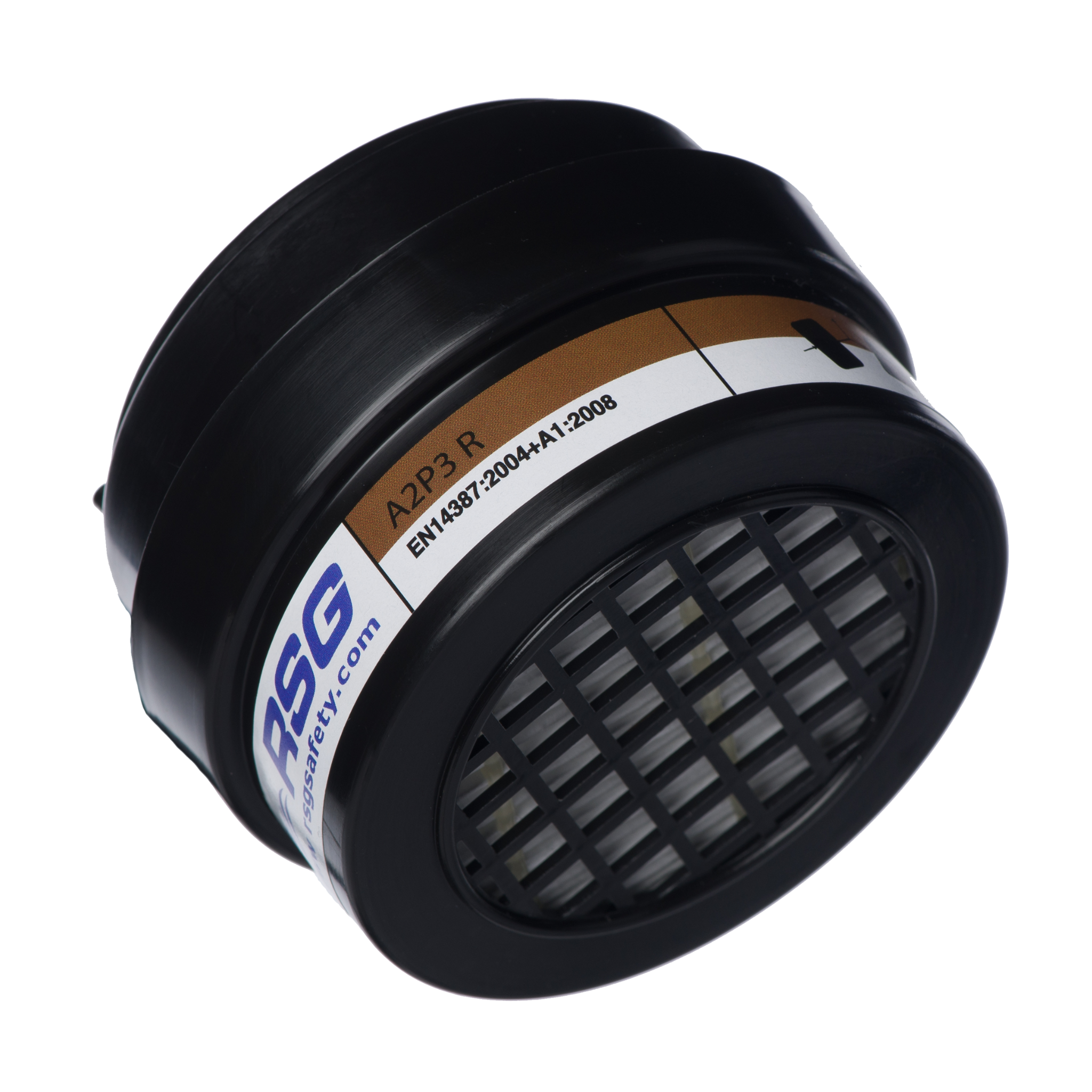

A2P3 Filter cartridge – 300 Series

Product number:

Description

RSG Safety manufactures a wide range of filter cartridges & canisters protecting from toxic industrial chemicals in the form of gases, vapors and particles.

Bayonet connection

  • Intuitive connection allows a fast and safe fastening of the mask.
  • locking mechanism that allows the user to know if the filter has been placed correctly.



Colour codes
Brown: A Organic gases and vapours with boiling point > 65 ° C
Brown: AX Organic gases and vapours with boiling point ≤ 65 ° C
Grey: B Inorganic gases and vapours (e.g. chlorine, hydrogen sulfide, hydrogen cyanide)
Yellow: E Acid gases and vapours (e.g. sulfur dioxide, hydrogen chloride)
Green: K Ammonia and derivatives
Red: Hg Mercury vapour
◉ White: P Particles, mists, fumes

Compatible with

Features

Part number  301109
Model RSG 300 Series
Material ABS
Color Black
Weight
Size n.a.
Shelf life 5 Years
Country of manufacture The Netherlands
Operating temperature -10 – +55 °C, < 90 % RH
Storage temperature -10 – +55 °C, < 95 % RH
Assigned protection factor 10
Nominal protection factor 48
Approval EN 14387:2004 + A1:2008
Directive (EU) 2016/425 PPE
