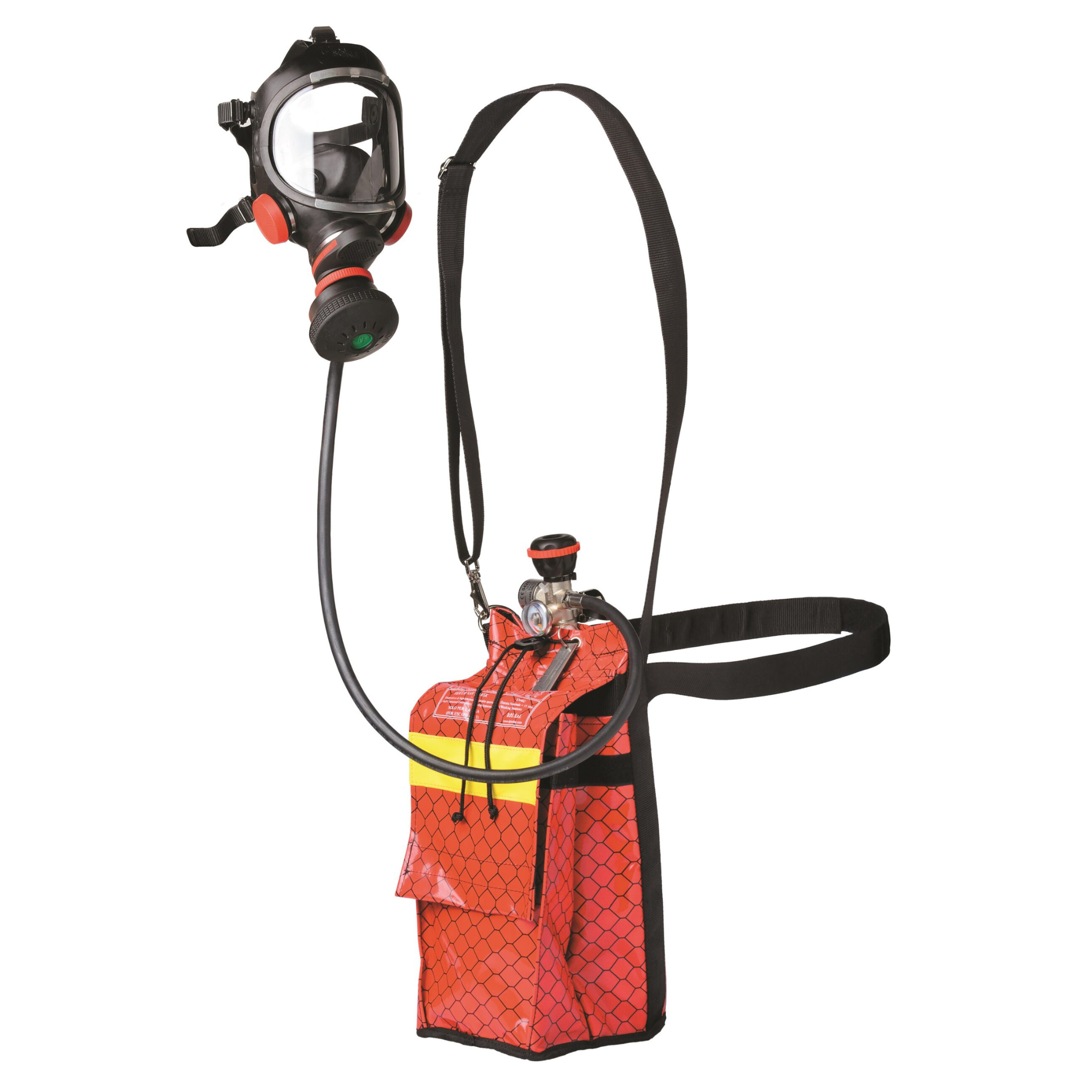

RSG SNM EEBD Mask

Product number: , ,

Description

The SNM is an insulating escape device equipped with a full face mask and a demand valve and is certified for 15 minutes duration.

  • In SNM the first stage is integrated in the cylinder valve so that the first stage and the valve are one object only.
  • This solution provides a lot of benefits as to simplicity and lightness. SNM can be used as an escape device or as Airline backup device through the SWOV automatic switch over valve.

Models available:

    • With 3-liter steel cylinder at 200 bar.
    • 2-liter composite cylinder at 300 bar, 15 min. rated duration.

The SNC complies with EN 1146 and ISO 23269-1 as well as compliant to MED Directive.



Features



Part number 500510 / 500520 / 500530
Model RSG Escape devices
Materials:
  • Full face mask: EPDM
  • Visor: Policarbonate
  • Inner half mask: Silicone
  • Carrying bag: Coated fabric
  • Valve/Reducer: Hot pressed nickel-plated brass alloy
  • Cylinder: Steel or composite
SNM uses:

  • a 3.0 lt., 200 bar steel cylinder, or
  • a 2 l., 300 bar composite cylinder (SNM 15C).
    Cylinders are manufactured to EC specification (PED).
Weight
  • SNM ready to use steel cylinder: 7 kg
  • SNM ready to use with composite cylinder: 4,7 kg
Size one size fits all
Shelf life 6 Years
Country of manufacture Italy
Operating temperature -15 – +60 °C, < 90 % RH
Storage temperature -10 – +60 °C, < 90 % RH
Assigned protection factor
Nominal protection factor
Certifications SNM complies with EN 1146 and ISO 23269-1.
Compliant to MED Directive
Directive (EU) 2016/425 PPE
